N330 Vibrometer and balancer

Multifunkční přístroj pro kontrolu a měření vibrací :

• vibrometr
• FFT analyzátor vibrací
• vyvažovací zařízení v 1 nebo 2 rovinách
• nezávislé a současné měření ve 2 kanálech
• USB port
• propojení s PC

K přístroji lze dodat software " N-Pro", který umožní přenos veškerých dat na PC, kde dojde k jejich automatické archivaci. Tato data lze potom neomezeně vyvolat, zpracovat, provést jejich analýzu či vytisknout.

Prospekt PDF

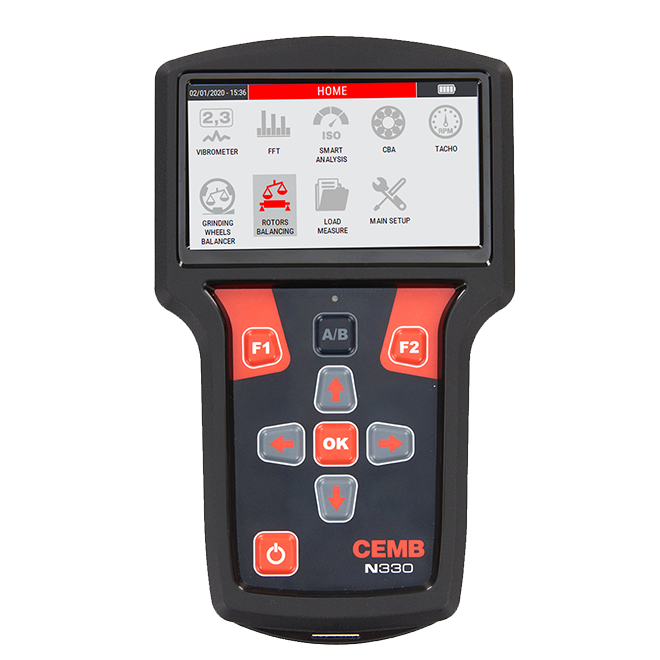

Portable Vibrometer and Balancer with 4,3" graphic display

N330 Vibrometer and balancer with smart functions

The smart solution for any rotating machine

Havy duty instrument, quick&Easy to use

Easy Balancing Feature

• Rotors Balancing

• Grinding balancing with 2 or 3 counterweights

• Angular split

• Balancing report

  GENERAL CHARACTERISTICS	Color Display 4,3” TFT LCD (480 x 272 pixel) New EasyClick tactile keyboard with embossed keys
  MEASUREMENT TYPES	Effective value (RMS) Peak value (Pk) Peak-to-peak value (PP)
  MEASURING PERFORMANCE	Bandwidth: 1-10 KHz FFT Resolution: Max 3200 lines Tacho: Up to 250000 rpm
  UNITS OF MEASUREMENT	Acceleration: [g] Velocity: [mm/s] or [inch/s] Displacement: [μm] or [mils] Frequency: [Hz] or [Cpm]
  INPUT	1 measuring channels IEPE sensor, accelerometer and velocimeter (with a specify cable pluggable on a BNC for read any dinamic signal max. 5V-PP) 2 channels specify for balancing (2nd channel as optional). 1 photocell channel (velocity and angle reference) 1 MicroUSB 2.0 port for data transfer 1 jack plug for battery charger
  AMBIENT	Temperature: from -20° to +70° C Air humidity: from 0 to 95% without condensate Protection: IP54
  POWER SUPPLY	Long Life Battery: > 8 hours based on typical use Charging time: 2,5 hours for 80% recharge 4 hours for 100% recharge Rechargeable 3100 mAh Lithium battery Power supply-battery charger for 100-240 V, 50/60 Hz (24 V, 1.5 A)
  CARRYING CASE DIMENSIONS AND WEIGHT	Approx. 440(L) x 360 (H) x 115(D) 1800 g
