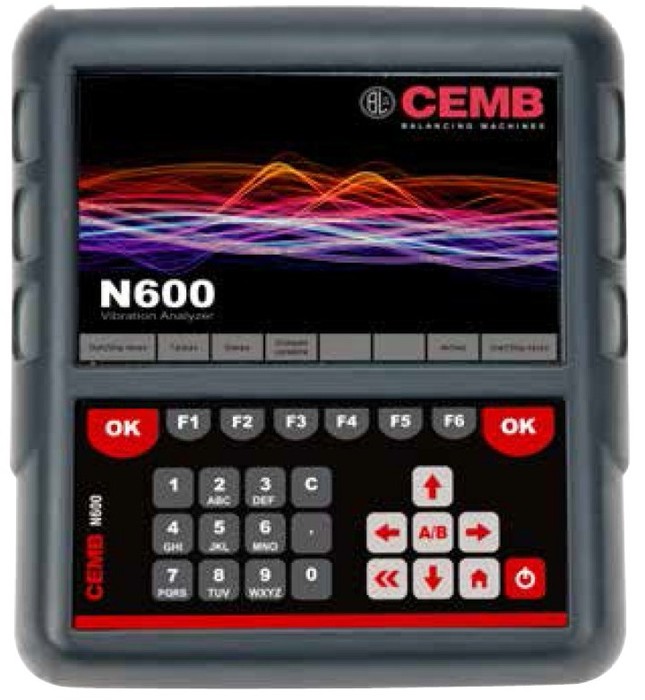

N600 Portable balancer

Zkoumání a porozumění vibracím rotačních strojů se stává stále důležitější. Vybrat ze všech signálů ten, který způsobuje vibrace je velmi užitečná informace. Proto CEMB rozšiřuje svou nabídku mobilních přístrojů o nový model N600. Je to dvoukanálový multifunkční přístroj s jednoduchou obsluhou, který lze použít jako vibrometr, FFT analyzátor, ke kontrole celkových vibrací v závislosti na čase nebo otáčkách a k vyvažování rotujících částí v jedné nebo dvou zvolených vyvažovacích rovinách. Při vyvažování je obsluha krok za krokem vedena povely na displeji.

Jednoduchá obsluha přes velký displej a intuitivní software usnadňuje analýzu příčin vibrací.

 prospekt N600_CZ.pdf

N600 portable Balancer dual channel vibrometer for vibration analysis, static and dynamic balancing, condition monitoring and advanced machinery diagnostic

N600 portable Vibration analyzer and balancer is the ideal tool for dual plane field balancing and machinery vibration monitor; It is perfect for both professional condition monitoring jobs, for occasional use and for advanced FFT analysis of vibrating machines.

Compact and rugged, N600 is designed to make static and dynamic balancing very easy and accurate.

N600 can perform single plane and dual plane balance of any type of rotors, either very low speed or very high speed with its 250.000 RPM laser photocell.
Up to 10KHz bandwith, 3200 lines FFT shown on a high visibility large 7” color graphic display makes N600 a very powerful instrument to execute professional vibration analysis in complex situations.
The mini USB port enables data transfer from N600 to a PC, for those professional who need to make post-processing analysis or to generate balancing reports.

2 plane balancing and vibration analysis made simple

Vibrations Analyzer extremely powerful and versatile, designed for quick Vibrometric checks,  balancing in service conditions, detailed analysis on any rotating machine.

Perfect balance is key for industrial machinery efficiency, long life and cost saving

N600 Vibration analyzer and balancer provides the information needed for the organization of predictive maintenance.
It’s the best solution for technical interventions, test room, R&D and technical service for balancing and for vibration analysis.
The portable instrument N600 through a detailed analysis of the vibrations, allows the control and the solution of any vibration problem in a simple, quick and intuitive way by a powerful software designed to ease the operator work.

main functions of N600 vibration Analyzer

Advanced vibration analysis, FFT and troubleshooting of rotating machines
rotating balancing on 1 or 2 correction planes
Vibration analysis in function of time and speed (Bode diagram)
Run up and coast down  for critical frequencies looking
Analysis of the waveforms in the time domain
Vibration phase measurement
Vibration Frequency Analysis
Overall vibration Measurement (acceleration, velocity, displacement)

FUNCTIONS	Measurement of the overall vibration value (acceleration, velocity, displacement) • Vibration phase measurement • Analysis of vibration in the frequency range • Monitoring overall vibration in relation to time or velocity (Bode plot) • Balancing of rotating bodies in operating conditions on 1 or 2 planes • Waveform
MEASUREMENT TYPES	Effective value (RMS) • Peak value (Pk) • Peak-to-peak value (PP)
UNITS OF MEASUREMENT	Acceleration: [g] • Velocity: [mm/s] or [inch/s] • Displacement: [μm] or [mils] • Frequency: [Hz] or [Cpm]
INPUT	2 independent and simultaneous measuring channels (accelerometer, velocimeter, non-contact, any signal max. 5V-PP) • 1 photocell channel (velocity and angle reference) • 2 USB ports for data transfer
VIBROMETER FUNCTION	Measurement of the overall vibration value in predefined frequency bands (10-1000Hz; 3-300Hz; 10-10000Hz) or bands defined by the user (within the range of 3-20000Hz) • Measurement of 1x fundamental vibration value and phase • Measurement of rotating body velocity
FFT FUNCTION (ANALYSIS IN FREQUENCY)	FFT analysis (manual/trigger) • Maximum settable frequency (25; 100; 500; 1000Hz; 2.5; 5; 10; 15kHz) • Resolution (100; 200; 400; 800; 1600; 3200 lines) • Number of averages: from 1 to 16 • List of main peak values
MONITOR - DATA LOGGER FUNCTIONS	Recording and display of overall vibration trend over time • Storage and display of vibration trend and phase when rotation velocity changes
BALANCING FUNCTION	Number of correction planes: from 1 to 2 • Graphic indicator of measurement stability • Balancing procedure, guided step by step, with option for editing and intermediate changes • Vectorial breakdown of the unbalance • Correction by adding or removing material
GENERAL CHARACTERISTICS	Display: 7” colour LED-backlit TFT LCD • A/D converter: 24 bit resolution • Dimensions: approx. 225 x 200 x 50 mm • Weight: 1.4 kg
OPERATING CONDITIONS	Temperature: from -10° to +50° C • Air humidity: from 0 to 95% without condensate
POWER SUPPLY	Rechargeable 6Ah Lithium battery • Charging time: < 5 hours (when battery is fully discharged) • Power supply-battery charger for 100-240 V, 50/60 Hz (24 V, 1.5 A) • Battery life: > 8 hours based on typical use
